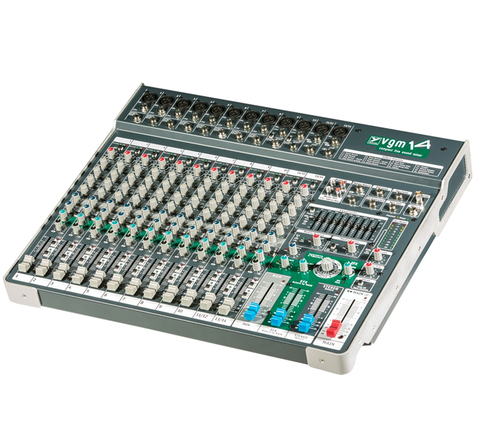

Yorkville VGM14 Passive Series Mixer

Yorkville

  • $68500


The Yorkville VGM14 delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs. An IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.

Features:

  • Ten Mono Input Channels
  • XLR & ¼" TRS inputs
  • Channel 9 & 10 Mono Inputs have a Hi-Z switch
  • 2 Additional stereo line inputs (11/12, 13/14)
  • Additional XLR mono input per stereo channel
  • Maximum 12 Mic inputs
  • Input gain level control / compressor on inputs
  • Additional Controls:
    • 3-band EQ with Sweep Mid
    • High Pass Filter
    • Monitor, Aux and Effect Send
    • Clip LED
    • Mute Switch and Pan control per Channel
    • 4-band EQ's on Stereo Channels
  • 60mm Faders Throughout
  • Global 48 volt Phantom Power
  • Stereo 9-band graphic EQ on Main/Monitor
  • Stereo RCA Media Outputs with Level Control
  • BREAK Switch (mutes all input channels)
  • Stereo RCA Input w/ Level Control
  • USB Audio I/O
  • Zone/Sub Output with Level Control
  • Main stereo TRS phone and XLR outputs
  • Sixteen 24-bit digital audio effects
  • Effects TRS output jack
  • Effects defeat footswitch jack
  • Effects return to Main and Monitor
  • Stereo Return TRS jacks with fader
  • Headphone Level Control
  • Dual 10-segment LED Output Meter
  • IEC removable line cord receptacle (No Adaptors)
  • Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.
