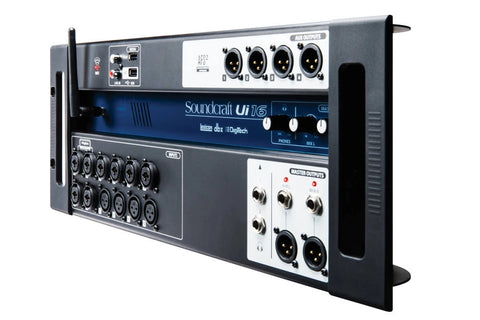

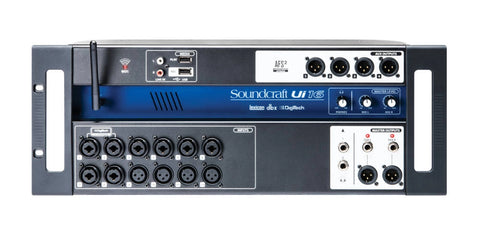

Soundcraft Ui-16 Compact 16 Input Remote-Controlled Digital Mixer
UI-16
Ui16 packs a complete digital mixing system into a compact, road-rugged stagebox format, with built-in Wi-fi and the ability to be controlled by any connected device via a standard web browser - no Apps, no OS limitations, no constraints on how or where you mix.
Ui is safe, simple and secure, empowering you to be able to mix easily from anywhere in the venue and supercharge your live sound with powerful digital mix features and dedicated processing from some of the biggest names in the business - dbx, Lexicon and Digitech.
FEATURES:
• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx, Digitech, and Lexicon
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-channel USB audio playback and recording
Integrated Wi-Fi
No dongles. No unsecure connections. No worries. With Ui there's no need to setup and configure an external router. The hardware has an integrated Wi-Fi router onboard, enabling direct remote control of your mixer's functions. Wired Ethernet connection is also provided and can be used in conjunction with the Wi-Fi connected devices.
Connect up to 10 devices simultaneously
Everybody gets control. But not of everything. Up to 10 devices can be connected simultaneously with security settings applied to each to limit the parameters they have access to. So musicians can control their monitor mixes with no danger of affecting the front-of-house sound. It all adds up to quicker, easier set-ups, happier musicians and a better live sound.
Legendary live sound processing
Mix with Soundcraft and you're always in good company. Premium effects and processing from dbx, Digitech and Lexicon bring truly professional 'outboard-quality' live sound production power to your mix.
Don't settle for generic style effects - Ui offers the best tools to help you put on a great show, including dbx dynamics processing, advanced feedback suppression, Digitech Amp/Stompbox Modelling, and three Lexicon effects processors for stunning reverbs, delays and choruses.
Specifications:
Hardware Form: Floor/Rack
Wi-Fi Router Onboard: Yes
Ethernet control: Yes
Total Inputs: 16
XLR Mic Inputs: 8 Mic/Line, 4 Mic
Hi-Z/instrument channels: 2
Main Outputs: XLR and 1/4"
Aux / Monitor Sends: 4 balanced XLR
USB Playback: 2-channel
USB Stereo Recording: 2-channel
HDMI Output: Yes
Headphone 1/4" out: 2
Stereo RCA Line input: Yes
