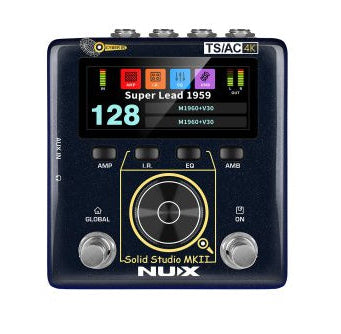

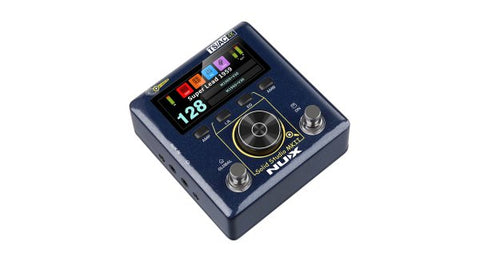

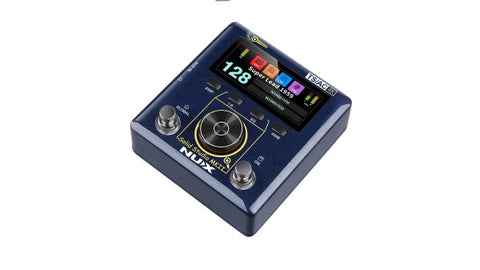

NUX Solid Studio MKII Preamp Power Amp Simulator & IR Loader Pedal
NSS6
The Solid Studio MKII (NSS-6) has the most iconic Physical Amp Modeling algorithm: TSAC-4K with an independent Preamp and Power Amp combination. TSAC-4K (White-box) algorithm brings realistic playability and the tube amp's negative feedback response. This groundbreaking technology will offer you the best performance, and you can experience that ANALOG FEELING.
Our Brand New Cyber IR™ Technology is a real Impulse Response reproduction with a premium algorithm that offers Microphone, Position, and Distance tweaking. Solid Studio MKII gives you Stereo IR Capabilities with ultra-low latency. (Bypass: 0.85ms ; Efx Engaged: 1.9ms)
*NUX collaborated with CHOPTONES IRs.
PEDAL PLATFORM: OVERDRIVE SIGNAL COMPATIBILITY
The Solid Studio MKII is a great pedal-friendly platform for Amp-less applications. The unique TSAC-4K algorithm replicates the Tube Amp's response without unnatural compression. Its 110dB dynamic range and great headroom allow it to be used with most compressors and overdrive pedals.
Recording, Re-Amping, OTG(On-The-Go)
Record DRY & Play Processed Sound simultaneously.
As a modern musician, recording ideas immediately is essential. The Solid Studio MKII's premium A/D (TI PCM1840) and D/A (AKM AK4454VN) promises great sound quality. It's a good USB interface for recording your compositions.
Features
Stereo CYBER IR™ Engine with dual 1024 samples resolution.
Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping.
Currently 8 classic AMP models.
One-piece die-cast aluminum chassis.
AMP, 1.R., EQ, AMB effect blocks with free routing order.
2.86” color LCD display (960*376) with intuitive operations.
128 preset slots, independent L/R 60 IR slots.
BuiId-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.
NORMAL, INJECT input modes. (lNJECT to parallel the power amp signal.)
USB audio interface, firmware update, SOLlD STUDl0 editor™ edit software.
USB-C MIDl, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with
GND lift, Phones Out for silent practice.
Great Dynamic Range: 110dB
Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged)
Specifications
INPUT Impedance: 1MΩ
AUX IN Impedance: 10kΩ
OUTPUT 1, OUTPUT 2 Impedance: 100Ω
Phone Impedance: 10Ω
Dynamic Range: 110dB
Sampling Rate: 48kHz/32bit
System Latency: 0.85ms (Bypass) ; 1.9ms (Effect On)
Power: 9V DC (Negative Tip)
Current Draw: < 600mA
Dimensions: 105mm(L)x115mm(W)x58(H)mm
Weight: 450g
