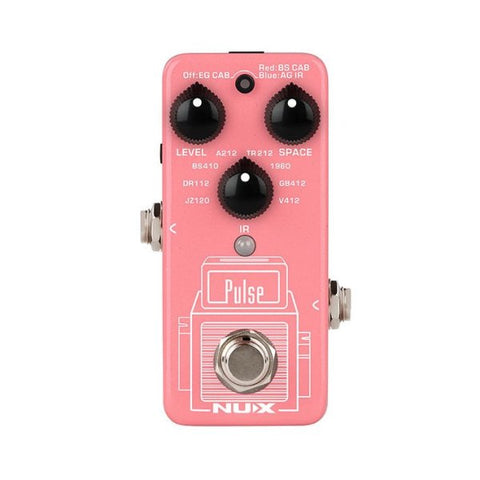

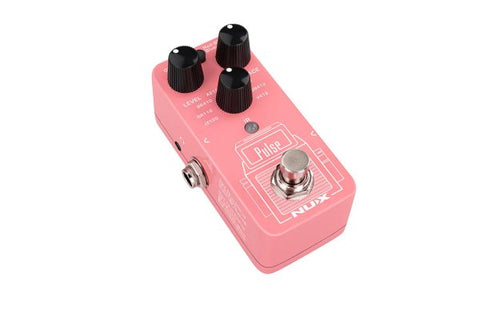

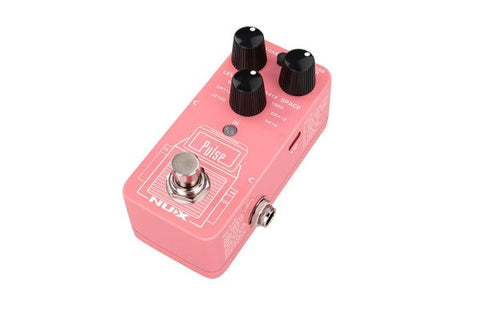

NUX Pulse Mini IR Loader Effects Pedal
NSS4
Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch.
WAV format supports automatically. (through Pulse Editor)
3 default IR types in the mini enclosure. (Total=24slots)
EG CAB: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412.
BS CAB: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212.
AG IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie.
1024 samples real time calculation.
True-bypass or Buffer-bypass.
Supports Stereo.
Low power consumption. (less than 100mA)
USB Audio Stream, Firmware Update.
Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
Input Impedance:1MO
Output Impedance:10kO
Dynamic Range: 103 dB
DSP Processing: 48KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit
Power:9V DC(Negative tip, Optional ACD-006A adapter)
Current Draw: less than 100mA
Dimensions:94(L)X51(W)X53(H)mm
Weight:175g
