NUX Mod Core Deluxe MKII Modulation Effects Pedal With 8 Modes
MODCOREDELUXEMKII

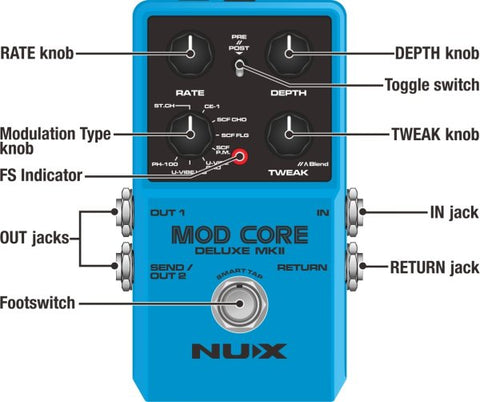

The NUX MOD CORE DELUXE MKII is a modulation pedal with 8 different types including ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100. You can switch the mod types by way of the Type rotary switch.
8 modulation types in a compact enclosure.
ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100.
ST.CH is based on MXR Stereo Chorus.
CE-1 is based on BOSS CE-1.
SCF is based on TC Electronic SCF Stereo Chorus Flanger.
U-VIBE is based on Dunlop UV-1 Uni-Vibe Chorus / Vibrato.
PH-100 is based on MXR Phase 100.
Normal routing(mono out or stereo out) and advanced routing(PRE, // , POST).
Parallel routing offers Blend parameter.(Alt mode, Tweak becomes Blend parameter.)
Smart Tap Tempo. (50~200 BPM)
Low power consumption. (less than 120mA)
Analog dry signal for low noise and zero latency
Weight: 270g
Input Impedance: 1MO
Output Impedance: 1kO
Dynamic Range: 104 dB
DSP Processing: 48KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit
Power: 9V DC(Negative tip, Optional ACD-006A adapter)
Current Draw:less than 120mA
Dimensions: 122(L) X 72(W) X 47(H)mm
