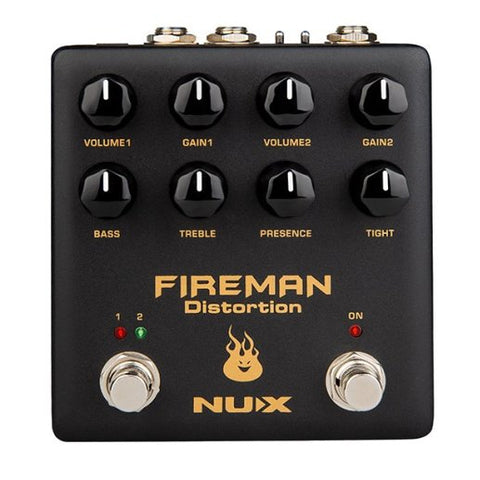

NUX Fireman Distortion Pedal
NDS5
Dual Channel Brown Sound in a Box. FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range
Bass: Adjusts the low-end response of the distortion sound.
Treble: Adjusts the high-end response of the distortion sound.
Presence: Adjusts the ultra-high frequencies of the distortion sound.
Tight: Shapes the low-frequency content. (Lower it to tighten the sound.)
Volume 1: Adjusts the output level in channel 1.
Gain 1: Adjusts the distortion level of the sound in channel 1.
Volume 2: Adjusts the output level in channel 2.
Gain 2: Adjusts the distortion range of the sound in channel 2.
Footswitch 1/2: Selects the current channel (1 or 2).
On Footswitch: Turns the distortion sound on or off.

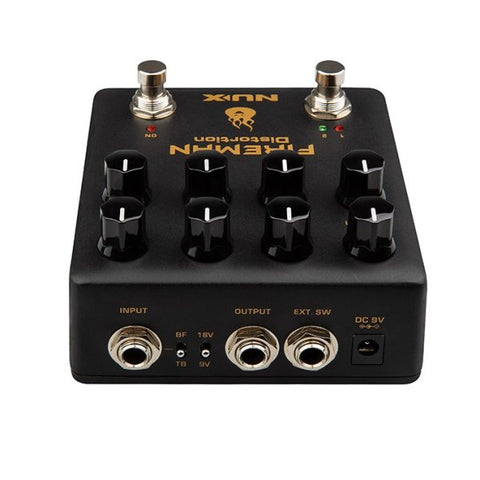

Input: Connects to your guitar or the guitar signal.
Output: Connects to the amplifier or the amp side.
Ext. SW: Connects to dual footswitches to replace the two footswitches on the pedal.
BF/TB toggle switch: BF means buffer bypass, TB means true bypass.
18V/9V toggle switch: The pedal uses a 9V power supply. You can select the 18V position to double the internal operating voltage for a wider dynamic range.
DC jack: Connects to a 9V negative peak power supply with a 100mA adapter.
Modern brown tone in a box.
True bypass/buffer bypass toggle switch.
18V/9V toggle switch for different dynamic ranges.
Two independent gain and volume knobs for rhythm/solo application.
Frequency response: 20Hz ~ 20kHz - ±1dB
Input impedance: 2.2mΩ
Output impedance: 1mΩ
Power supply: 9V DC, negative tip, ACD-006A
Dimensions: 105 (W) × 115 (D) × 58 (H) mm
Weight: 460 g
