Alto Professional TX310 10" Powered Loudspeaker, 350W
TX310
Its time to Introduce new the Alto TX310. A 350-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of the acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.
The TX310 features a bi-amplified 2-way design, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90 degree H x 60 degree V radiation pattern - ideal for optimal audience coverage.

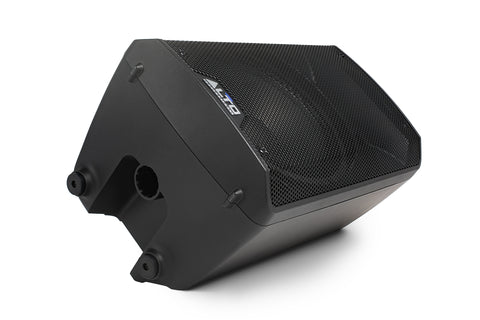

The TX310 is housed in a rugged, lightweight, easily transportable cabinet. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it's easy to see that the TX310 plays an indispensable role in your performance.
Features
• 350 Watts peak, (175 Watts continuous Class D power)
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your investment
• 10-inch (254 mm) LF driver, 1.5-inch (38.1 mm) voice coil
• 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Designed and tuned in the USA
Technical Specifications
System Type: 2-way active ported loudspeaker
Drivers
Low-Frequency: 10.0" (254 mm) driver, 1.4" (35.5 mm) voice coil
High-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
Amplifier: 350 watts (peak), 175 watts (continuous), Class D power
Horn Coverage: 90 degree horizontal x 60 degree vertical (nominal)
Frequency Response: 75 Hz - 20 kHz (-3 dB)
Crossover Frequency: 2.5 kHz
Max SPL: 116 dB @ 1 m
Connectors:
(1) XLR balanced input (Line/Mic)
(1) XLR output (Link)
(1) IEC power cable input
Controls: Power switch, volume control knob
Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power
Connection: IEC
Voltage: 100-240 V~; 50/60 Hz
Fuse: T2AL/250V
Consumption: 150 W
