Yorkville Elite Series EMX400 Compact Scalable PA System
The Yorkville Sound Excursion EXM400 Compact PA is a 400 watt, four channel Bluetooth enabled active stereo system built with mobile live sound in mind. Lightweight compact extension speakers, innovative pole-through connectivity and versatile input / mixer functions ensure the EXM400 can easily be used in small solo or duo performances, DJ applications, conferencing and public address functions.

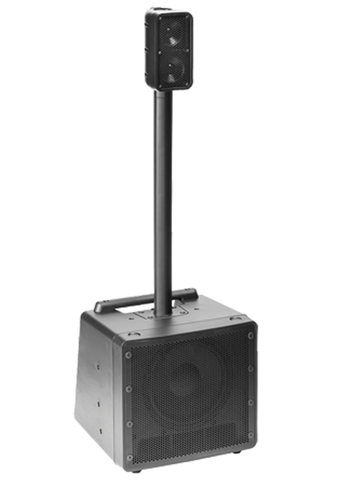

Designed for maximum mobility, the center of the EXM400 is a compact powered subwoofer module with integrated mixer. Two high efficiency satellite speakers and two speaker poles complete the core package. Connectivity between subwoofer / mixer and satellite speakers is handled with innovative pole through conductors, meaning no extra cabling is required.
Integrated 24-bit digital effects ensure the EXM400 can be used for live musical performances without need of cumbersome external signal processing. A padded nylon carry bag is included with the package to maximize user convenience.
A dedicated Bluetooth channel means direct connection of any Bluetooth enabled audio device for music playback can be made without additional cables. This makes the EXM400 the ideal compact high fidelity conferencing / presentation and public speaking system.
- Active or Passive: Active
- Program Power (Watts): 400
- Nominal Impedance (Ohms): 4 ohms (sub), 8 ohms (satellites)
- Max SPL (dB): 121dB
- Frequency Response: (Hz +/- 3dB) 50Hz - 20kHz
- Crossover Frequency (Hz): 240Hz
- HF Driver(s): 2 x 3.5" per satellite
- HF Program Power (Watts): 75W per channel
- HF Impedance (Ohms): 8
- HF Protection : Peak and RMS limiting
- LF Driver(s): 1 x 10-inch
- LF Program Power(Watts): 250
- LF Impedance (Ohms): 4
- LF Protection: Peak and RMS limiting
- HF Amplifier Type: Class AB Half Bridge
- LF Power Amplifier (Watts): Class D Full Bridge
- Cooling Scheme: Passive convection
- Channel 1 Input:
- Combi-jack XLR &
- 1/4-inch (Microphone / Instrument)
- Channel 2 Input:
- Combi-jack XLR &
- 1/4-inch (Microphone / Line Input)
- Channel 3 Input:
- 2 x ¼-inch Input (Stereo)
- 1 x 1/8th Input (Stereo)
- Mixer Controls:
- Bluetooth Input
- Ch. 1 & 2: Level / Tone / Reverb
- Ch. 3/4: Level / Treble / Bass
- Bluetooth Level, Sub Level, Master Level
- Dimensions (DWH xbackW, inches):
- Sub: 14.5/15.5/14.5
- Height assembled system: 78"
